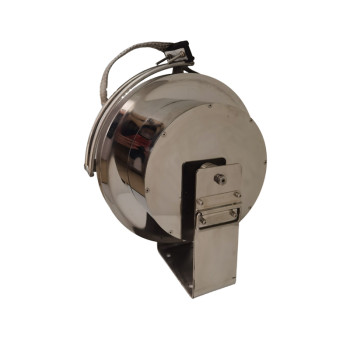

Bypass Conductor for Preventing petroleum tank lightning strikes

Categories	Retractable Grounding Reel
Brand	ALPTEC Static Grounding Solutions Manufacturer
Model	RGR
Max. cable length	23.0 m
Housing material	SS316L
Spring material	SS301
Certificate	ATEX
Unit Price	US $ 2052.3-2415.4 / piece
FOB port	Qingdao port or any port of China
Terms of Payment	L/C, Western Union, T/T, Paypal
Download
Update Time	Nov 21,2024

Contact Now

Favorites

Detail Information

1. Introduction

The Bypass Conductor for Preventing petroleum tank lightning strikes is designed to discharge the static electricity of floating roof storage tanks. It is used as the equipotential bonding between the floating roof and tank shell. The lightning current and bound charge will be effectively and rapidly dissipated to the earth upon a lightning strike. Compared with the conventional bypass conductor, it will effectively decrease the possibility of a lightning-induced fire, and make it more reliable and safe.

2. Advantages

1.316L stainless steels housing for corrosion resistance.

2.Pre-Tensioned: The RGR is pretensioned at the factory, so no on-site tensioning is required.

3.Overall mirror polishing, more beautiful, better corrosion resistance.

4. Braided strip outer stainless steel braiding protection, better tensile resistance.

5. China Patent No.: ZL 2016 2 1012793.X

6. Applicable Directive: 2014/34/EU & IECEx

3. Supplied Parts

4. Recommended RGR Quantities

5. Installation Diagram

6.Comparison

7. Company Information

Our Retractable Grounding Reel had upgraded. There are several major advantages after the upgraded:

1. Replace the spring steel spring to 301 SS spring, which has a longer service life and better performance of corrosion resistance.

2. We optimize the structure and make it a fully sealed structure, without water inlet.

3. An additional bearing is added for smoother and more reliable operation.

4. High copper carbon brush is used for the flow guide, which has better flow guide performance.

5. Housing thickness increased from 1.2mm to 2.0mm, which is more stable and reliable.

6. A cable stop is added to prevent weakening of pretension.
